Irrigation Non-Pressure Lateral Line Trench Detail

About this detail

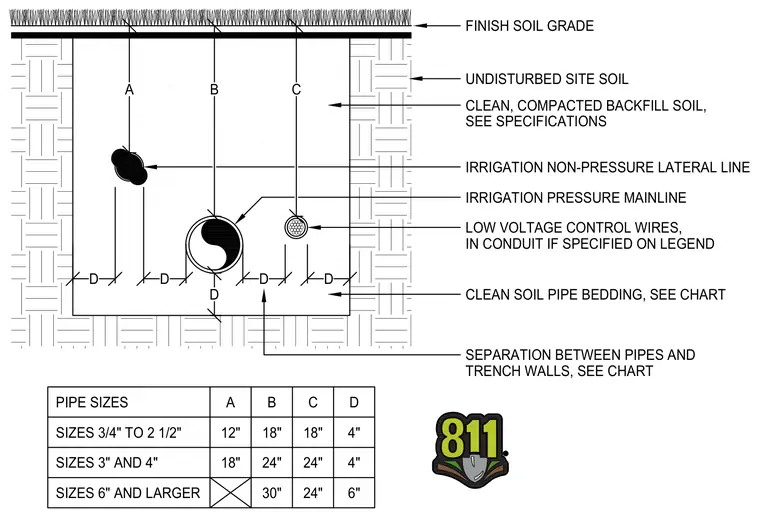

An excavation in undisturbed site soil houses an irrigation non-pressure lateral line and pressure mainline resting on clean soil pipe bedding. Low voltage control wires run adjacent within a conduit when specified on the legend. The trench is filled with clean, compacted backfill up to the finish soil grade. Dimensions A, B, C, and D provide cover depths and pipe separation distances based on pipe sizing charts.
