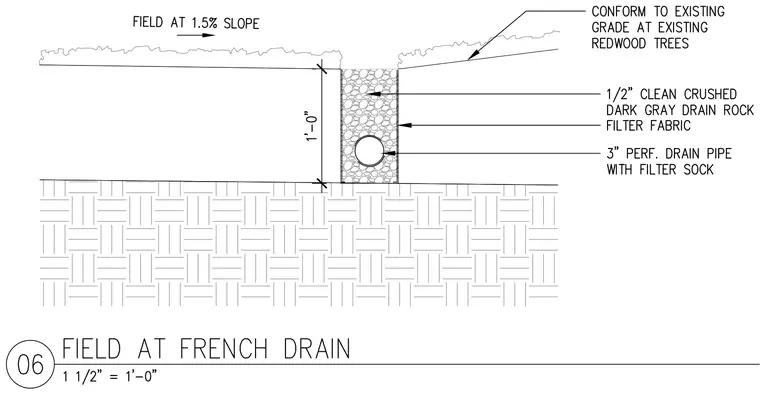

A three-inch perforated drain pipe with filter sock sits at the base of a one-foot deep trench filled with one-half inch clean crushed dark gray drain rock. Non-woven filter fabric lines the trench walls around the aggregate and pipe. The surrounding field slopes at one and one-half percent toward the drain, conforming to existing grade at existing redwood trees.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
