Landscape · L-FQVMD

Planting Layout

Elements

About this detail

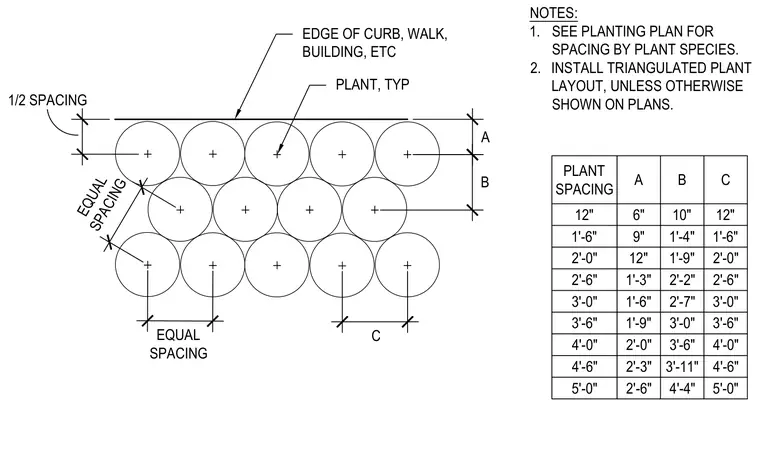

A triangulated planting layout is arranged relative to curbs, walks, or buildings with plants spaced evenly in staggered rows maintaining equal spacing between centers. Dimensions A, B, and C vary depending on the base plant spacing, ranging from twelve inches up to five feet. Notes specify that plant spacing must follow the planting plan by species and that a triangulated layout is required unless otherwise indicated.
