Landscape · L-FQSHH

Deciduous Tree and Shrub Planting

About this detail

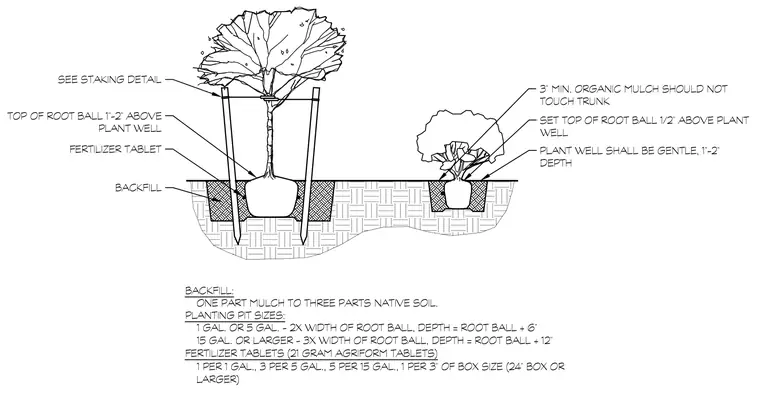

The deciduous tree and shrub planting assembly establishes proper root ball elevation, planting pit dimensions, backfill composition, and surface mulching. Planting pits for one-gallon or five-gallon specimens are excavated to twice the root ball width with a depth equal to the root ball plus six inches, while fifteen-gallon or larger specimens require three times the root ball width and a depth equal to the root ball plus twelve inches. The backfill consists of one part mulch mixed with three parts native soil. Fertilizer tablets utilizing twenty-one gram Agriform tablets are installed at a rate of one per one gallon, three per five gallons, five per fifteen gallons, and one per three inches of box size for twenty-four-inch boxes or larger. The top of the root ball is set one-half inch to two inches above the gentle plant well, which features a one-inch to two-inch depth. A three-inch minimum organic mulch layer is applied around the planting but kept clear of the trunk.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
