Cast-in-place concrete paving with reinforcement as required per structural drawings rests on a six-inch compacted crushed aggregate base over a compacted subgrade. The concrete slab has a thickness of four and one-half inches, and paving dimensions vary per plan.

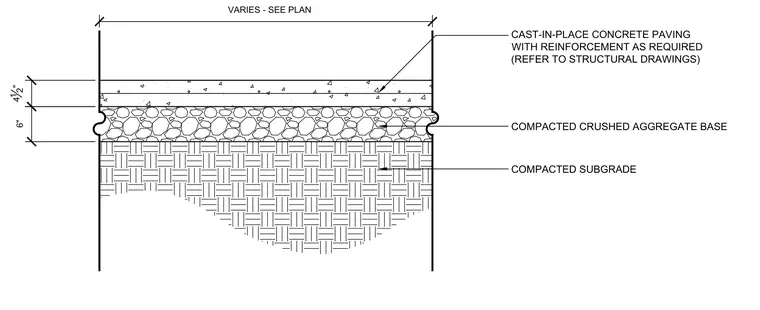

CAST-IN-PLACE CONCRETE PAVING WITH REINFORCEMENT AS REQUIRED (REFER TO STRUCTURAL DRAWINGS) COMPACTED CRUSHED AGGREGATE BASE COMPACTED SUBGRADE 4 1 2" 6" VARIES - SEE PLAN
