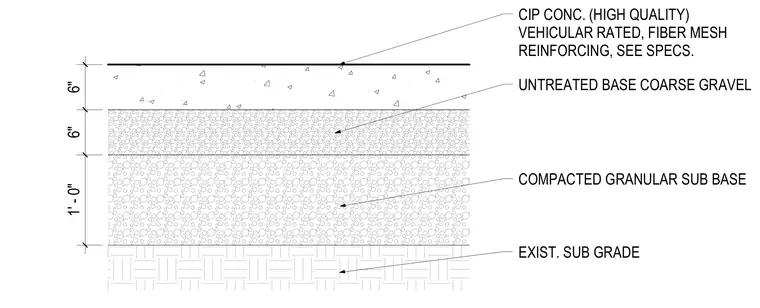

A vehicular-rated cast-in-place concrete paving section bears on prepared sub-base layers. The top wearing course consists of a six-inch high-quality cast-in-place concrete slab with fiber mesh reinforcing. Below the concrete slab lies a six-inch untreated base coarse gravel layer. A one-foot thick compacted granular sub-base supports the gravel base, resting directly upon the existing subgrade.
EXIST. SUB GRADE CIP CONC. (HIGH QUALITY) VEHICULAR RATED, FIBER MESH REINFORCING, SEE SPECS. COMPACTED GRANULAR SUB BASE UNTREATED BASE COARSE GRAVEL 6" 6" 1' - 0"
