An athletic field surfacing section consists of a six-inch layer of infield mix placed over a three-inch layer of coarse sand. The sand rests on a subgrade compacted to ninety-five percent dry density as specified by civil drawings. Material specifications reference section 321823.13 for the infield mix and section 329100 for the coarse sand.

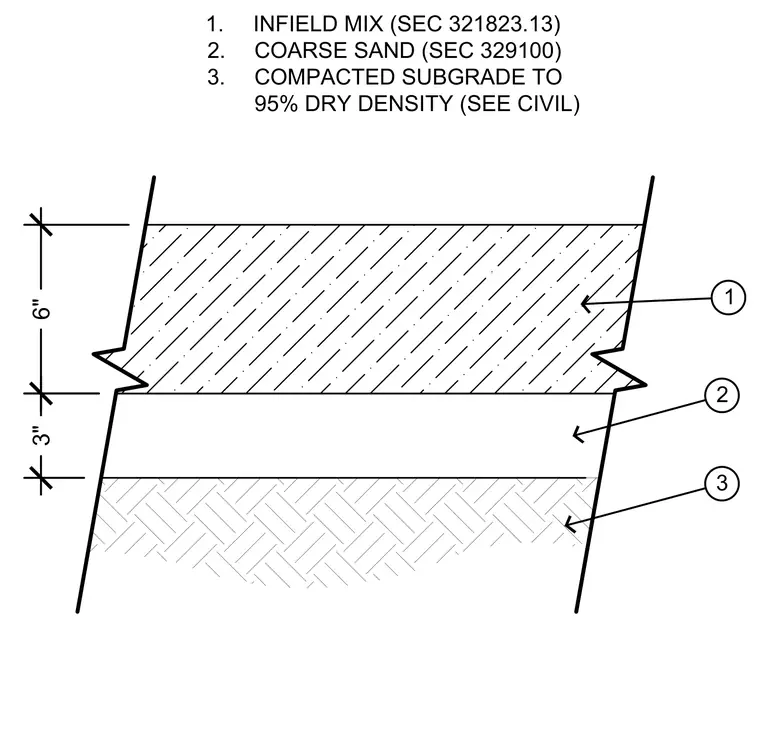

1. INFIELD MIX (SEC 321823.13) 2. COARSE SAND (SEC 329100) 3. COMPACTED SUBGRADE TO 95% DRY DENSITY (SEE CIVIL) 6" 3" 1 2 3
