A manual drain valve assembly ties into the main irrigation line via a schedule 80 PVC tee. A four-inch length of three-quarter-inch schedule 80 threaded nipple connects the tee to a valve housed within a two-inch schedule 40 PVC sleeve. A two-inch length of three-quarter-inch schedule 80 threaded nipple extends from the valve to a three-quarter-inch PVC street elbow.

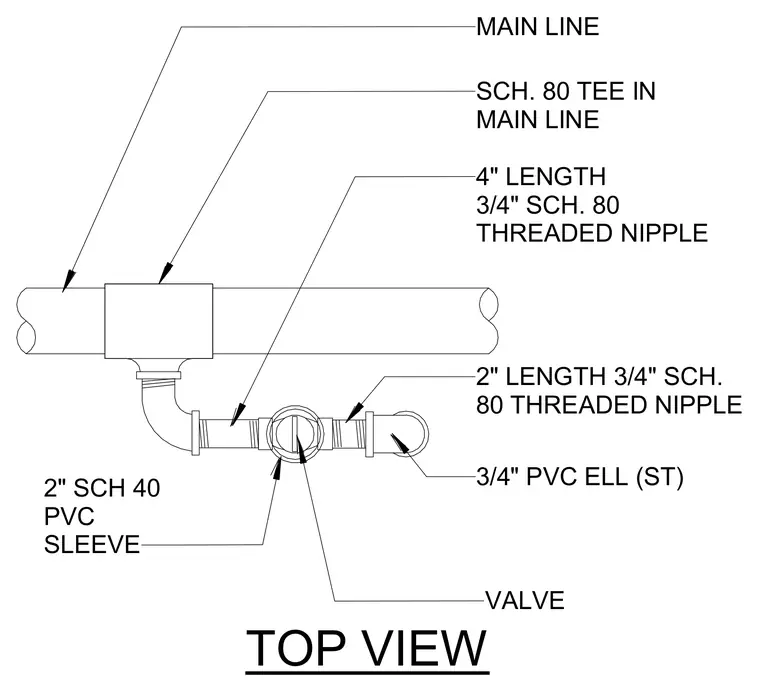

2" SCH 40 PVC SLEEVE VALVE 3/4" PVC ELL (ST) 4" LENGTH 3/4" SCH. 80 THREADED NIPPLE SCH. 80 TEE IN MAIN LINE MAIN LINE 2" LENGTH 3/4" SCH. 80 THREADED NIPPLE TOP VIEW
