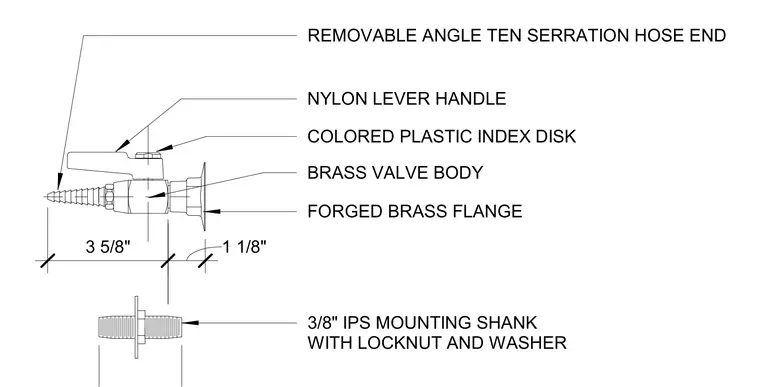

The assembly consists of a brass valve body operated by a nylon lever handle featuring a colored plastic index disk. A forged brass flange sits against the mounting surface while a three-eighths-inch IPS mounting shank with a locknut and washer secures the connection. The outlet features a removable angle ten-serration hose end. Overall dimensions show a three and five-eighths inch length to the hose end and a one and one-eighth inch offset.
REMOVABLE ANGLE TEN SERRATION HOSE END 3/8" IPS MOUNTING SHANK WITH LOCKNUT AND WASHER FORGED BRASS FLANGE COLORED PLASTIC INDEX DISK NYLON LEVER HANDLE BRASS VALVE BODY 3 5/8" 1 1/8"
