Four pop-up tree sprays connect to a PVC lateral line pipe via a triple swing joint assembly and lateral line fittings. Each tree utilizes four Rain Bird six-inch pop-up tree sprays equipped with quarter-circle square pattern nozzles positioned at the edge of the planting pit. Sprinklers are adjusted to prevent overspray onto tree trunks, paving, or walls.

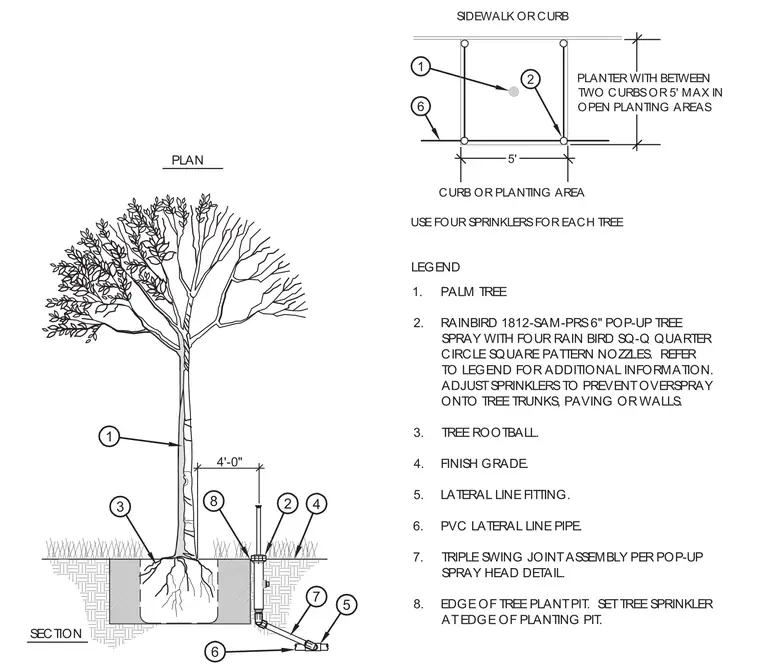

SECTION PLAN 1 2 3 5 4 6 7 8 4'-0" 1 2 USE FOUR SPRINKLERS FOR EACH TREE 6 5' 1. PALM TREE 2. RAINBIRD 1812-SAM-PRS 6" POP-UP TREE SPRAY WITH FOUR RAIN BIRD SQ-Q QUARTER CIRCLE SQUARE PATTERN NOZZLES. REFER TO LEGEND FOR ADDITIONAL INFORMATION. ADJUST SPRINKLERS TO PREVENT OVERSPRAY ONTO TREE TRUNKS, PAVING OR WALLS. 3. TREE ROOTBALL. 4. FINISH GRADE. 5. LATERAL LINE FITTING. 6. PVC LATERAL LINE PIPE. 7. TRIPLE SWING JOINT ASSEMBLY PER POP-UP SPRAY HEAD DETAIL. 8. EDGE OF TREE PLANT PIT. SET TREE SPRINKLER AT EDGE OF PLANTING PIT. LEGEND SIDEWALK OR CURB CURB OR PLANTING AREA PLANTER WITH BETWEEN TWO CURBS OR 5' MAX IN OPEN PLANTING AREAS
