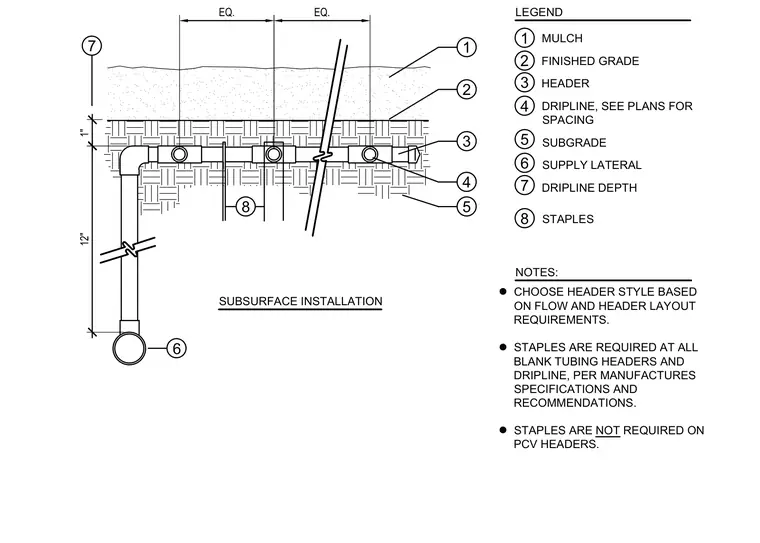

A subsurface header and dripline assembly for a landscape irrigation system consists of a supply lateral connected to a header positioned below the finished grade and mulch layer at a specified dripline depth of twelve inches. Driplines connect to the header with equal spacing, and staples secure blank tubing headers and driplines per manufacturer specifications. Header style is chosen based on flow and layout requirements, and staples are not required on PVC headers.
LEGEND MULCH FINISHED GRADE HEADER DRIPLINE, SEE PLANS FOR SPACING SUBGRADE SUPPLY LATERAL DRIPLINE DEPTH STAPLES 1 NOTES: EQ. EQ. 3 5 6 2 SUBSURFACE INSTALLATION 4 7 12" 1 1" 8 CHOOSE HEADER STYLE BASED ON FLOW AND HEADER LAYOUT REQUIREMENTS. STAPLES ARE REQUIRED AT ALL BLANK TUBING HEADERS AND DRIPLINE, PER MANUFACTURES SPECIFICATIONS AND RECOMMENDATIONS. STAPLES ARE NOT REQUIRED ON PCV HEADERS. 2 3 4 5 6 7 8
