An adjustable telescoping overhead service carrier assembly is suspended from the structure above using Unistrut P1000SL channels and tubular knee brace supports designated as P2458-18 and P2458-24. The telescoping vertical support utilizes Unistrut P9002 components, gravity pins, and a bottom Unistrut P9000 carrier channel positioned within an adjustable height range of 84 inches to 96 inches above the finished floor. The assembly accommodates piped services from Division 23 and electrical raceways from Division 26, with an optional ground bar and escutcheons installed at the finished ceiling line.

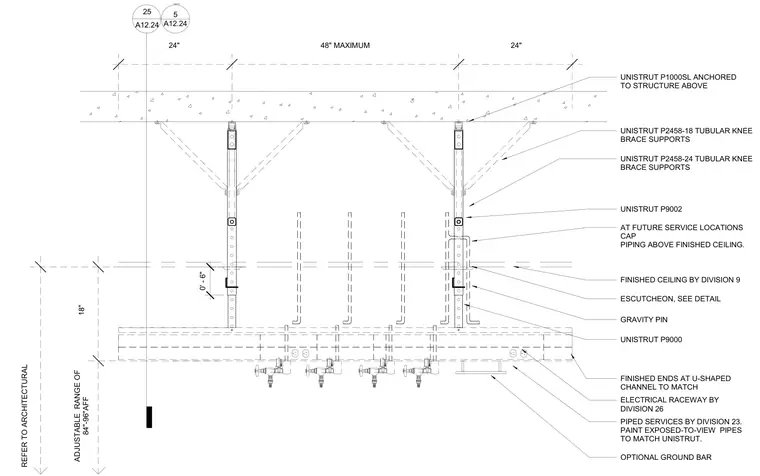

ADJUSTABLE RANGE OF 84"-96"AFF REFER TO ARCHITECTURAL 48" MAXIMUM PIPED SERVICES BY DIVISION 23. PAINT EXPOSED-TO-VIEW PIPES TO MATCH UNISTRUT. ELECTRICAL RACEWAY BY DIVISION 26 FINISHED ENDS AT U-SHAPED CHANNEL TO MATCH FINISHED CEILING BY DIVISION 9 UNISTRUT P2458-24 TUBULAR KNEE BRACE SUPPORTS UNISTRUT P2458-18 TUBULAR KNEE BRACE SUPPORTS UNISTRUT P1000SL ANCHORED TO STRUCTURE ABOVE ESCUTCHEON, SEE DETAIL UNISTRUT P9002 0' - 6" UNISTRUT P9000 25 A12.24 A12.24 5 GRAVITY PIN AT FUTURE SERVICE LOCATIONS CAP PIPING ABOVE FINISHED CEILING. 24" 24" 18" OPTIONAL GROUND BAR
