Control Valve - Drip Circuit

Materials

Elements

Waterproofing / Flashing Connections / Plates

About this detail

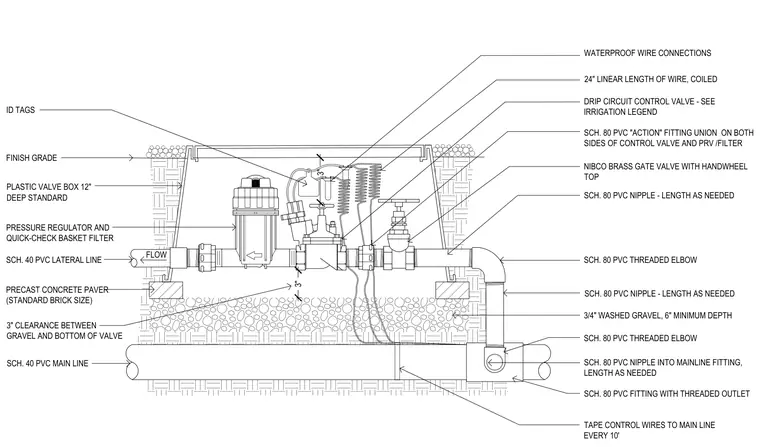

A drip circuit control valve assembly is housed within a twelve-inch deep standard plastic valve box resting on precast concrete pavers and a six-inch minimum depth of three-quarter inch washed gravel. The piping system features schedule 80 PVC nipples, threaded elbows, and schedule 40 PVC lateral and main lines connected to a pressure regulator, quick-check basket filter, and a Nibco brass gate valve with handwheel top. Schedule 80 PVC unions are installed on both sides of the control valve and pressure-reducing valve filter. Waterproof wire connections join twenty-four linear inches of coiled control wire taped to the main line every ten feet, complete with identification tags.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
