L-FAQE4 — Metal Deck Construction Schedule

Landscape · L-FAQE4

Metal Deck Construction Schedule

Units: imperial
Sheet: L2
Discipline: Landscape

Materials

Metal (misc.)Steel

Elements

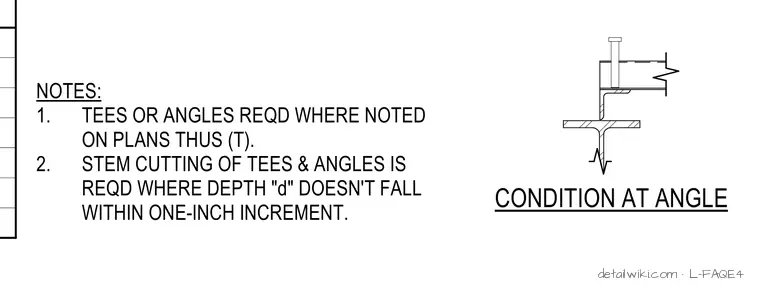

Text on the drawing

NOTES: 1. TEES OR ANGLES REQD WHERE NOTED ON PLANS THUS (T). 2. STEM CUTTING OF TEES & ANGLES IS REQD WHERE DEPTH "d" DOESN'T FALL WITHIN ONE-INCH INCREMENT. CONDITION AT ANGLE

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
