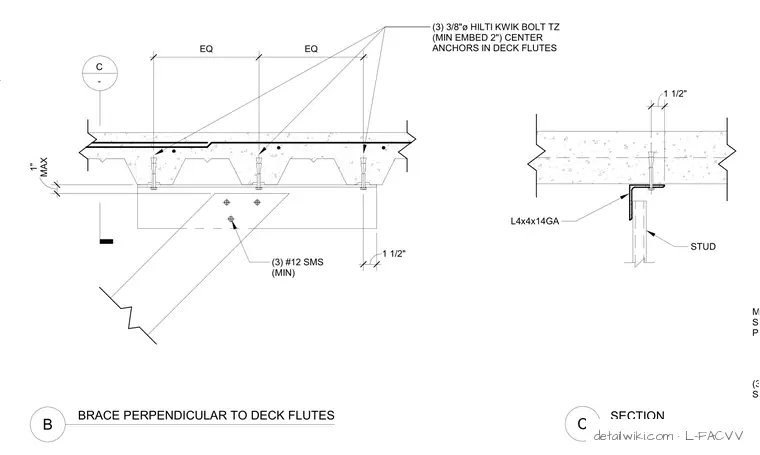

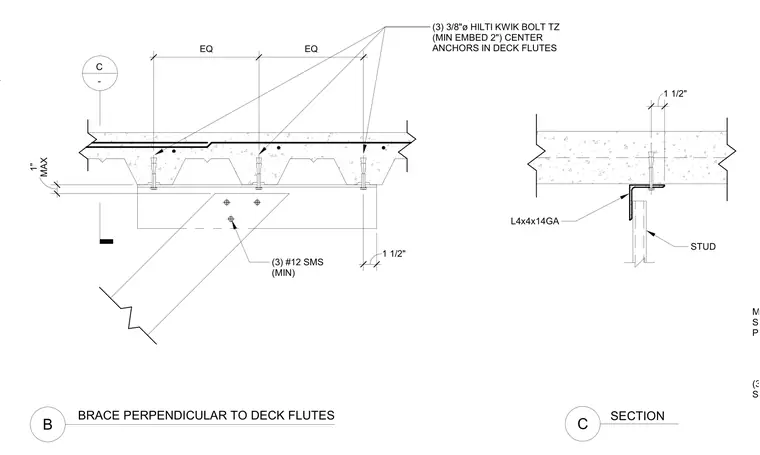

A cold-formed steel brace is connected perpendicular to metal deck flutes using three 3/8-inch-diameter Hilti Kwik Bolt TZ expansion anchors with a minimum embedment of 2 inches, centered in the deck flutes. Three number 12 self-tapping metal screws secure the brace connection. An L4x4x14 gauge angle ties into the metal stud per plan.
(3) #12 SMS (MIN) METAL STUD PER PLAN BRACE PERPENDICULAR TO DECK FLUTES (3) #12 SMS (MIN) (3) 3/8"ø HILTI KWIK BOLT TZ (MIN EMBED 2") CENTER ANCHORS IN DECK FLUTES MAX 1" 1 1/2" EQ EQ B C - SECTION L4x4x14GA STUD 1 1/2" C
