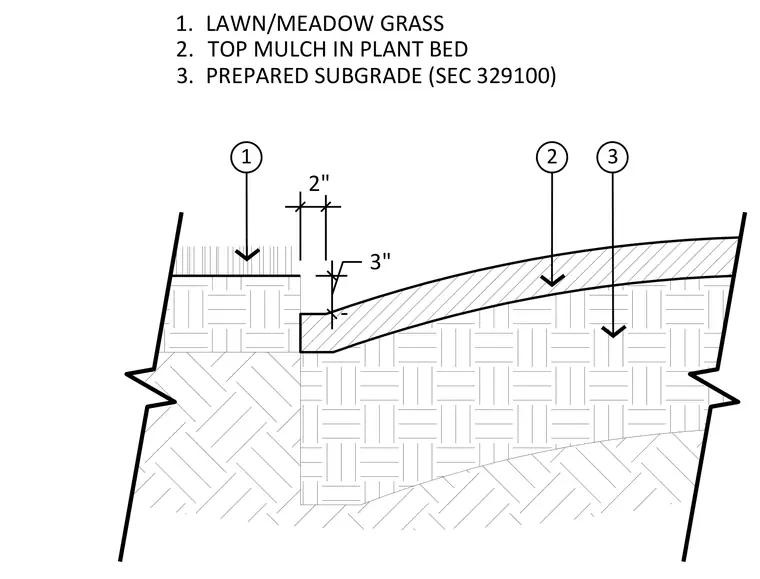

Lawn or meadow grass sits adjacent to a mulch-filled plant bed separated by a vertical soil edge. The plant bed consists of top mulch placed over a prepared subgrade. A two-inch horizontal offset and a three-inch vertical depth dimension define the separation between the turf and the mulch bed.
1. LAWN/MEADOW GRASS 2. TOP MULCH IN PLANT BED 3. PREPARED SUBGRADE (SEC 329100) 3" 2" 1 2 3
