Landscape · L-F5NQP

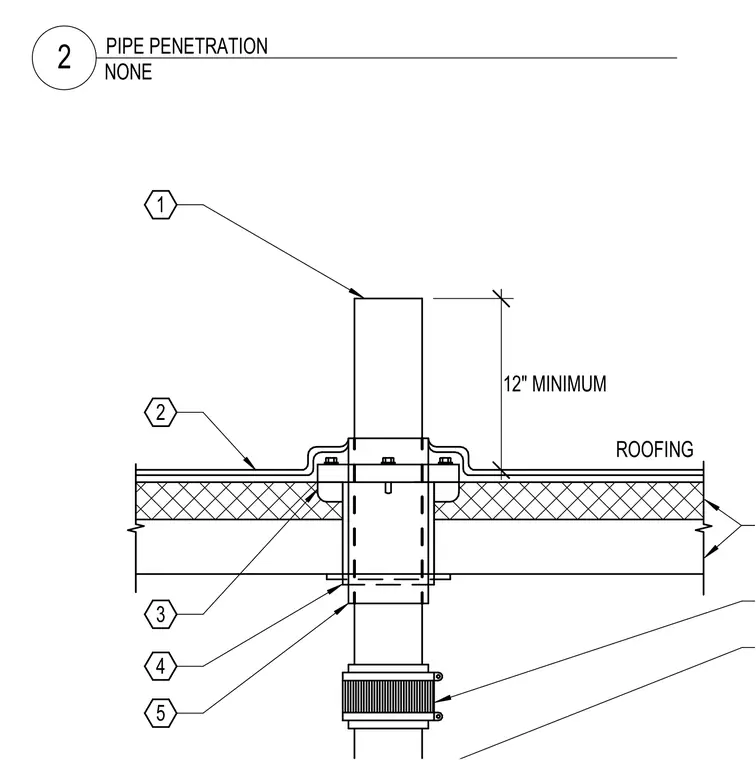

Pipe Penetration

Units: imperial
Sheet: LO-P5.0.1
Discipline: Landscape

Materials

Membrane / Roofing

Elements

Roof / Floor Openings Roofs Waterproofing / Flashing

Text on the drawing

ROOFING 2 12" MINIMUM 3 5 4 1 NONE 2 PIPE PENETRATION

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
