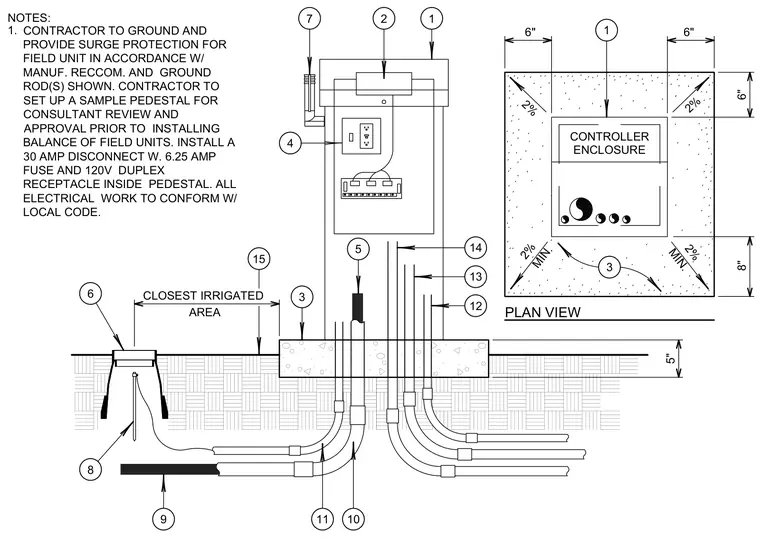

An irrigation controller enclosure is mounted on a concrete pad with a minimum 5-inch depth and specified offsets. Electrical provisions include a thirty-amp disconnect with a 6.25-amp fuse and a 120-volt duplex receptacle housed inside the pedestal. Grounding and surge protection are installed in accordance with manufacturer recommendations using ground rods. Multiple underground conduits route wiring and piping from the pad to adjacent irrigated areas.
CLOSEST IRRIGATED AREA 5" 6" 6" 6" 2% 2% PLAN VIEW 1 7 3 3 14 5 6 8 9 11 10 15 1 2% MIN. 8" 2% MIN. 2 4 13 12 CONTROLLER ENCLOSURE NOTES: 1. CONTRACTOR TO GROUND AND PROVIDE SURGE PROTECTION FOR FIELD UNIT IN ACCORDANCE W/ MANUF. RECCOM. AND GROUND ROD(S) SHOWN. CONTRACTOR TO SET UP A SAMPLE PEDESTAL FOR CONSULTANT REVIEW AND APPROVAL PRIOR TO INSTALLING BALANCE OF FIELD UNITS. INSTALL A 30 AMP DISCONNECT W. 6.25 AMP FUSE AND 120V DUPLEX RECEPTACLE INSIDE PEDESTAL. ALL ELECTRICAL WORK TO CONFORM W/ LOCAL CODE.
