Manifold and Valve Assembly

About this detail

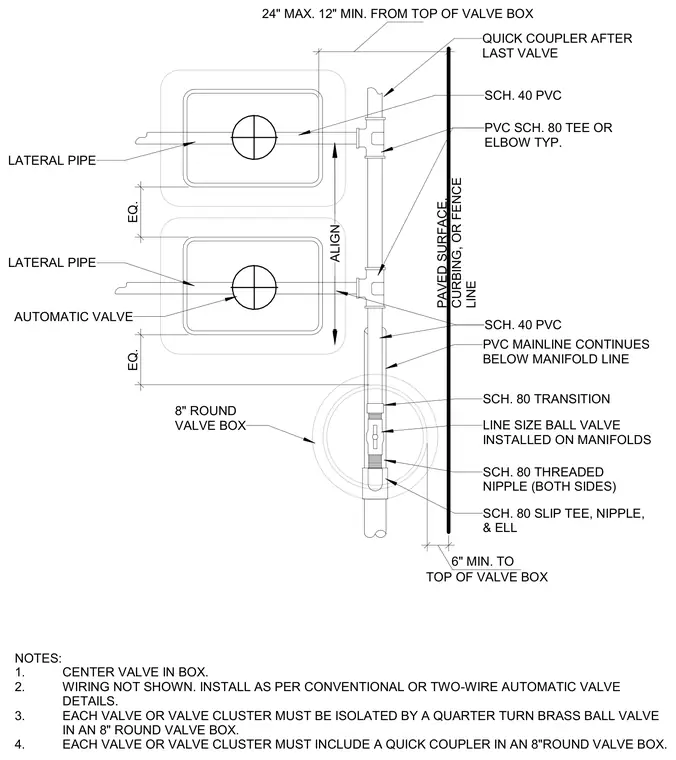

This irrigation manifold assembly connects a PVC mainline to multiple automatic valves and lateral pipes housed within protective valve boxes. The system incorporates schedule 80 PVC tees, elbows, slip fittings, nipples, and transitions, along with a line-size brass ball valve for isolation. A quick coupler is installed in an eight-inch round valve box after the last valve for auxiliary water access. Each valve must be centered within its box and maintained twelve to twenty-four inches below the top surface. Clearances of six inches minimum are required from paved surfaces, curbing, or fence lines.
