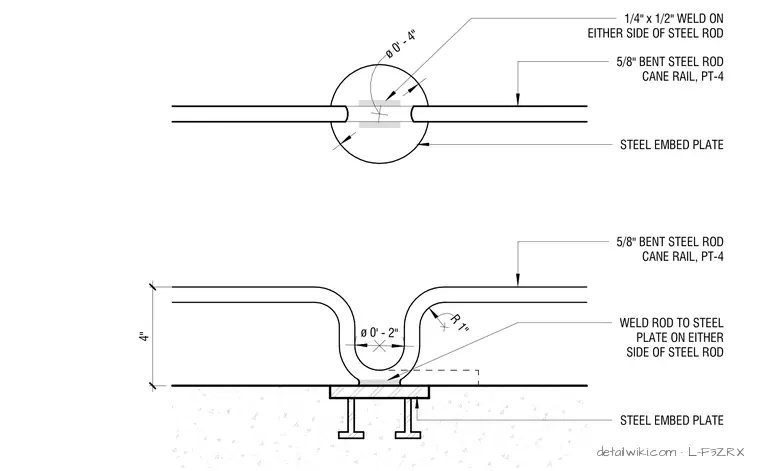

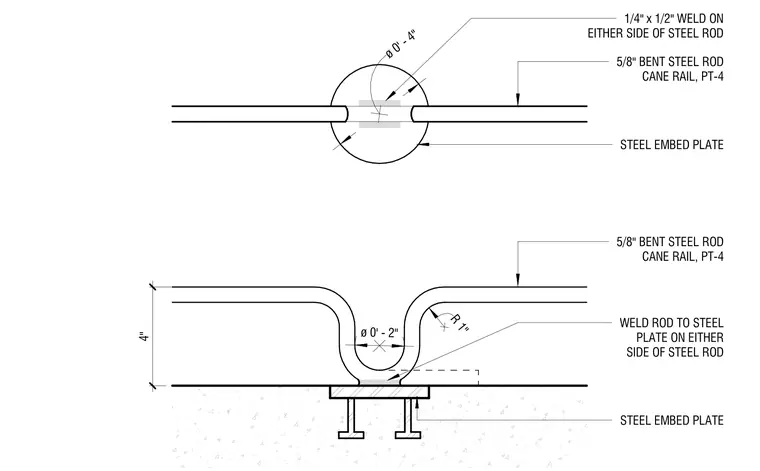

A 5/8-inch bent steel rod forms a cane rail with a 1-inch radius curve, extending 4 inches in height and 2 inches in diameter at the loop. The steel cane rail is secured to a PT-4 steel embed plate with 1/4-inch by 1/2-inch welds applied to either side of the steel rod. The embed plate is anchored into the concrete substrate.
4" ø 0' - 2" 5/8" BENT STEEL ROD CANE RAIL, PT-4 STEEL EMBED PLATE WELD ROD TO STEEL PLATE ON EITHER SIDE OF STEEL ROD 5/8" BENT STEEL ROD CANE RAIL, PT-4 STEEL EMBED PLATE ø 0' - 4" 1/4" x 1/2" WELD ON EITHER SIDE OF STEEL ROD R 1"
