The door frame is set in a framed interior partition wall with a continuous bead of silicone sealant over a backer rod on each side of the frame as required. Backer framing, blocking, and shims are provided at the jamb as necessary to secure the assembly. A vapor retarder is installed as occurs within the wall construction, and wall finishes are applied as scheduled. The door and door frame are installed per the door schedule, with swing direction referenced from the floor plans.

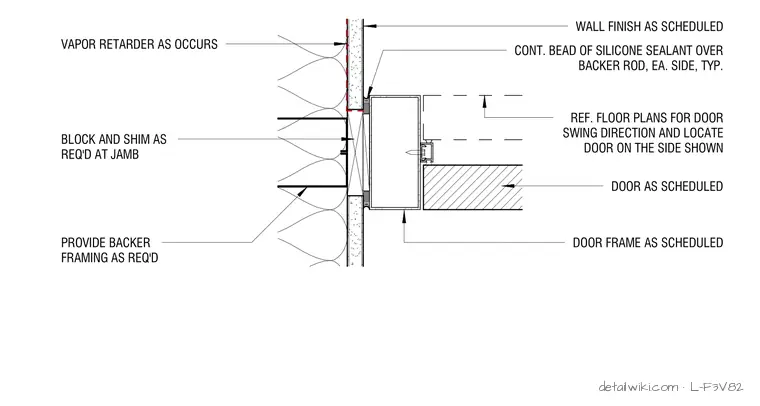

DOOR FRAME AS SCHEDULED DOOR AS SCHEDULED REF. FLOOR PLANS FOR DOOR SWING DIRECTION AND LOCATE DOOR ON THE SIDE SHOWN WALL FINISH AS SCHEDULED CONT. BEAD OF SILICONE SEALANT OVER BACKER ROD, EA. SIDE, TYP. PROVIDE BACKER FRAMING AS REQ'D BLOCK AND SHIM AS REQ'D AT JAMB VAPOR RETARDER AS OCCURS
