Architectural · L-F3EKN

Typical Casework Anchorage

Materials

Steel Timber / Wood

Elements

Walls Millwork / Casework Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage Embed Plate

About this detail

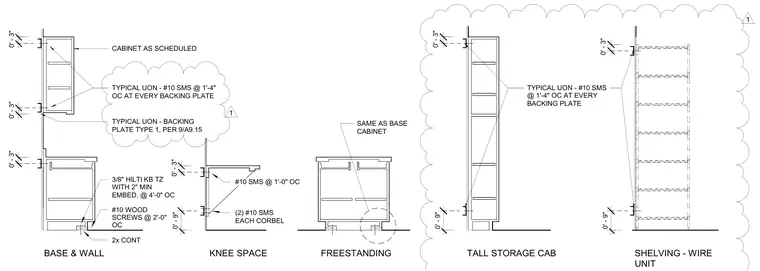

Casework and millwork anchorage configurations are detailed for base and wall cabinets, knee spaces, freestanding units, tall storage cabinets, and wire shelving units. Base cabinets connect to the floor using continuous 2x framing members secured with number 10 wood screws at two feet on center, alongside three-eighths inch Hilti KB-TZ expansion anchors with a two-inch minimum embedment at four feet on center. Wall cabinets, tall storage cabinets, and shelving units attach to backing plates using number 10 sheet metal screws at one foot four inches on center unless noted otherwise. Knee space corbels utilize two number ten sheet metal screws each, and knee space surfaces connect with number ten sheet metal screws at one foot on center.
