Landscape · L-EYB3F

Tee Rail Paving on Structure

Materials

Concrete Brick

Elements

Foundations / Footings Waterproofing / Flashing Site / Paving

Connections

Welded Connection Bolted Connection Expansion / Slip Connection

About this detail

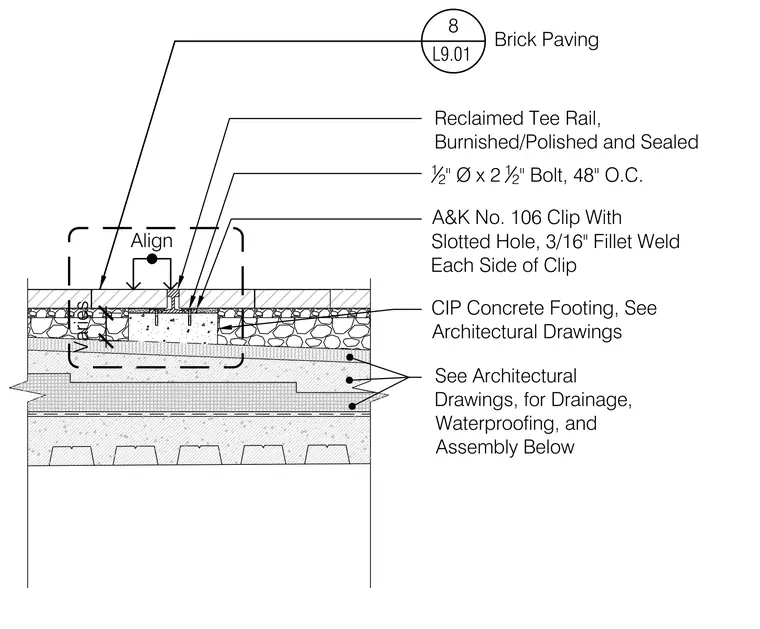

Brick paving is installed adjacent to a burnished, polished, and sealed reclaimed tee rail set over a cast-in-place concrete footing. The tee rail is secured using an A&K No. 106 clip with a slotted hole, fastened with a half-inch diameter by two-and-a-half-inch bolt spaced at forty-eight inches on center, and welded with a three-sixteenth-inch fillet weld on each side of the clip. The concrete footing bears on underlying drainage, waterproofing, and structural assemblies detailed in the architectural drawings.
