L-EVHEF — Metal Deck Support @ Column - Plan View

Landscape · L-EVHEF

Metal Deck Support @ Column - Plan View

Units: metric
Sheet: LO-S1.3.2
Discipline: Landscape

Materials

Metal (misc.)Steel

Elements

Beams Columns Connections / Plates Decks

Connections

Deck Attachment Welded Connection

Text on the drawing

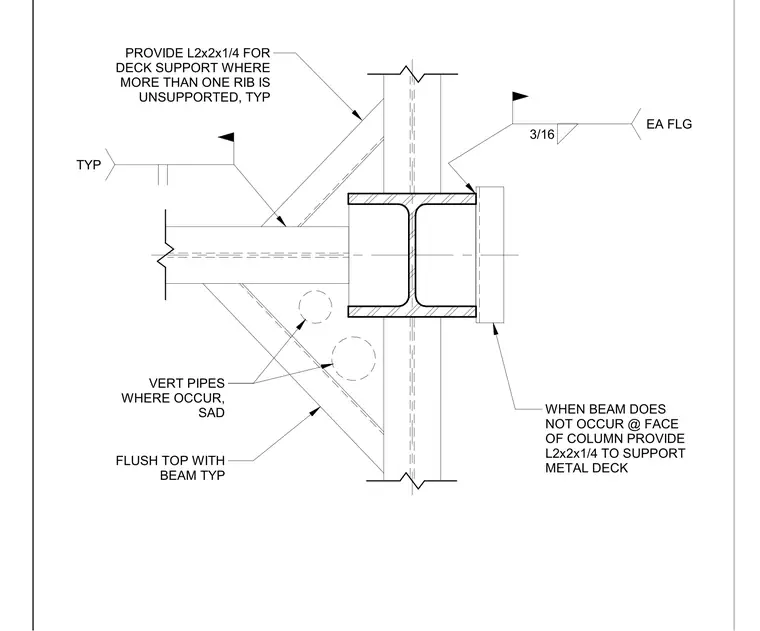

PROVIDE L2x2x1/4 FOR DECK SUPPORT WHERE MORE THAN ONE RIB IS UNSUPPORTED, TYP VERT PIPES WHERE OCCUR, SAD FLUSH TOP WITH BEAM TYP WHEN BEAM DOES NOT OCCUR @ FACE OF COLUMN PROVIDE L2x2x1/4 TO SUPPORT METAL DECK 3/16 EA FLG TYP
