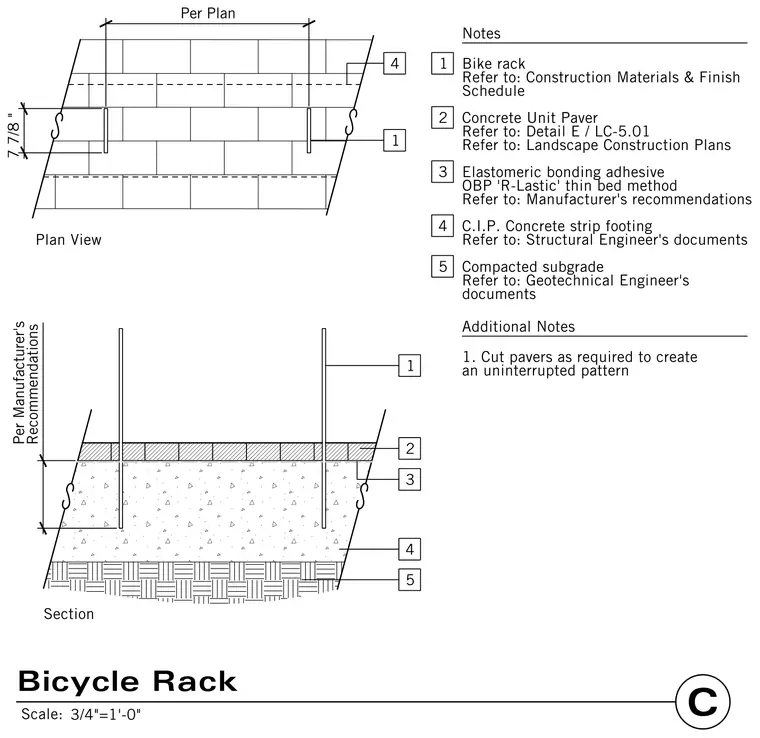

The bicycle rack is anchored directly through concrete unit pavers into a cast-in-place concrete strip footing below. Concrete unit pavers are set in elastomeric bonding adhesive using the OBP R-Lastic thin bed method over the structural concrete footing. The cast-in-place concrete strip footing rests upon a compacted subgrade layer. Pavers are cut as required to create an uninterrupted pattern around the anchorage.
