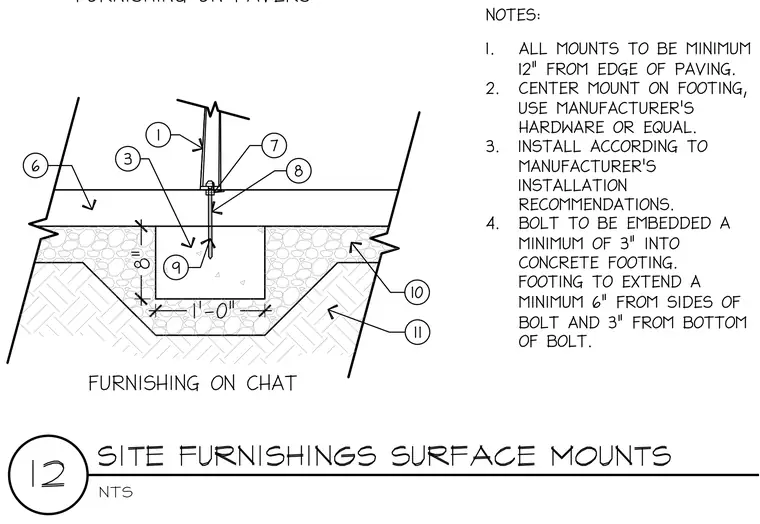

A site furnishing leg mounts to a concrete footing using an anchor bolt embedded a minimum of three inches into the concrete, with the footing measuring one foot wide by eight inches deep and extending six inches from the sides of the bolt and three inches from the bottom of the bolt. The mount rests atop paving or chat, centered on the footing, with all mounts positioned a minimum of twelve inches from the edge of the paving. Installation requires manufacturer's hardware or equal, installed per manufacturer's installation recommendations.
