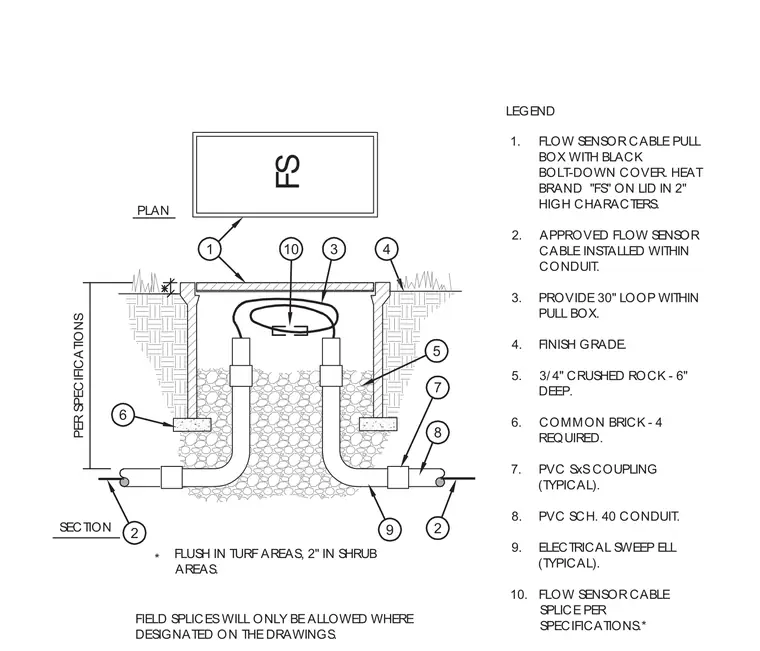

A flow sensor cable pull box with a black bolt-down cover is set flush with finish grade in turf areas or two inches high in shrub areas, featuring heat-branded FS characters on the lid. The box rests on common bricks and a six-inch deep bed of three-quarter-inch crushed rock. Approved flow sensor cable runs through Polyvinyl Chloride schedule 40 conduit connected with socket-by-socket couplings and electrical sweep elbows. A thirty-inch cable loop is provided within the pull box alongside a splice performed per specifications.
PER SPECIFICATIONS * 2 6 1 1. FLOW SENSOR CABLE PULL BOX WITH BLACK BOLT-DOWN COVER. HEAT BRAND "FS" ON LID IN 2" HIGH CHARACTERS. 2. APPROVED FLOW SENSOR CABLE INSTALLED WITHIN CONDUIT. 3. PROVIDE 30" LOOP WITHIN PULL BOX. 4. FINISH GRADE. 5. 3/4" CRUSHED ROCK - 6" DEEP. 6. COMMON BRICK - 4 REQUIRED. 7. PVC SxS COUPLING (TYPICAL). 8. PVC SCH. 40 CONDUIT. 9. ELECTRICAL SWEEP ELL (TYPICAL). 10. FLOW SENSOR CABLE SPLICE PER SPECIFICATIONS.* 5 2 9 8 LEGEND 3 10 FS 4 FLUSH IN TURF AREAS, 2" IN SHRUB AREAS. 7 SECTION PLAN FIELD SPLICES WILL ONLY BE ALLOWED WHERE DESIGNATED ON THE DRAWINGS.
