Plumbing · L-EMCR3

Round Handle

Materials

About this detail

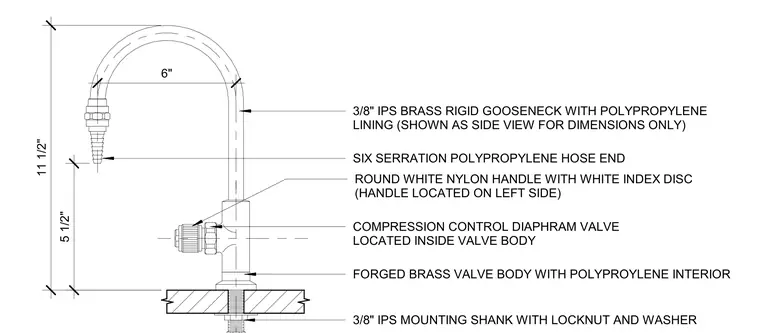

A laboratory gooseneck faucet mounts through a deck. The assembly features a forged brass valve body with a polypropylene interior, housing an internal compression control diaphragm valve. A round white nylon handle with a white index disc is positioned on the left side of the valve body. Extending upward is a three-eighths-inch IPS brass rigid gooseneck with a polypropylene lining, included in side view for dimensions only, terminating in a six-serration polypropylene hose end. The unit is secured to the mounting surface with a three-eighths-inch IPS mounting shank, locknut, and washer, standing eleven and one-half inches tall with a six-inch horizontal reach.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
