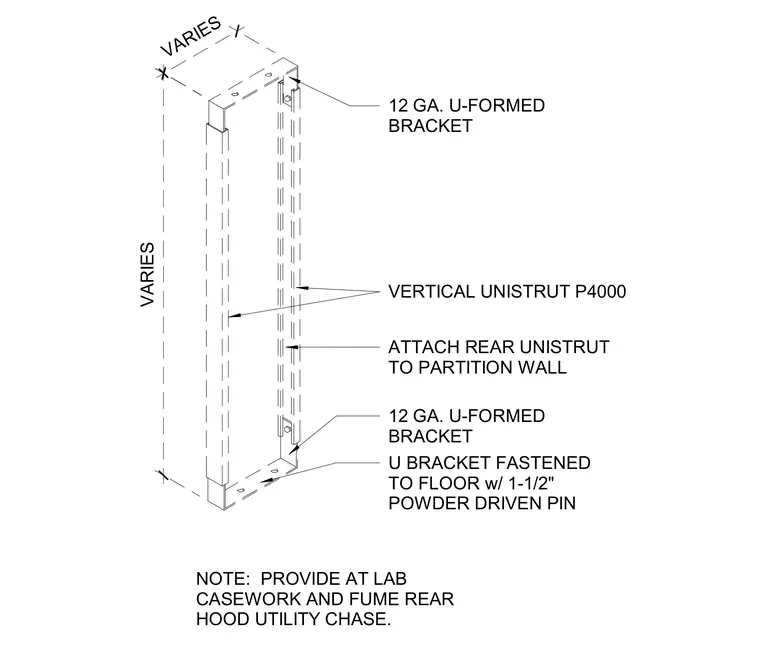

A vertical Unistrut P4000 channel is anchored at its top and bottom by 12 gauge U-formed brackets with variable dimensions. The rear Unistrut channel attaches directly to the partition wall, while the bottom U-bracket fastens to the floor using a one and one-half inch powder-driven pin. This support assembly is provided at laboratory casework and fume rear hood utility chases.
VARIES VARIES 12 GA. U-FORMED BRACKET VERTICAL UNISTRUT P4000 ATTACH REAR UNISTRUT TO PARTITION WALL U BRACKET FASTENED TO FLOOR w/ 1-1/2" POWDER DRIVEN PIN 12 GA. U-FORMED BRACKET NOTE: PROVIDE AT LAB CASEWORK AND FUME REAR HOOD UTILITY CHASE.
