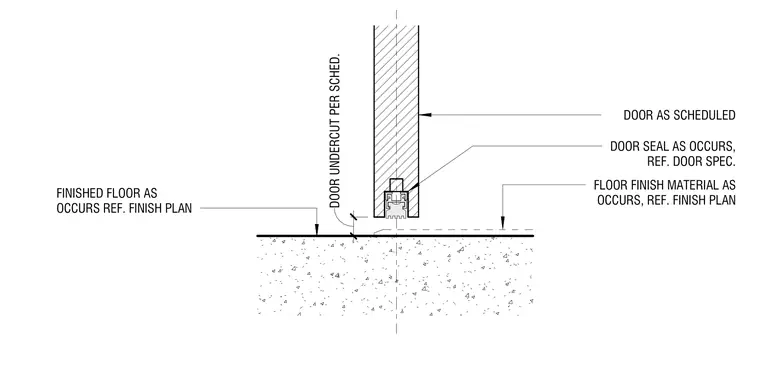

An interior door bottom condition without a raised threshold. The door as scheduled features a bottom door seal and a specific door undercut dimension referencing the door schedule. The floor finish material and finished floor line occur as indicated on the finish plan beneath the door leaf.
DOOR SEAL AS OCCURS, REF. DOOR SPEC. DOOR AS SCHEDULED FINISHED FLOOR AS OCCURS REF. FINISH PLAN DOOR UNDERCUT PER SCHED. FLOOR FINISH MATERIAL AS OCCURS, REF. FINISH PLAN
