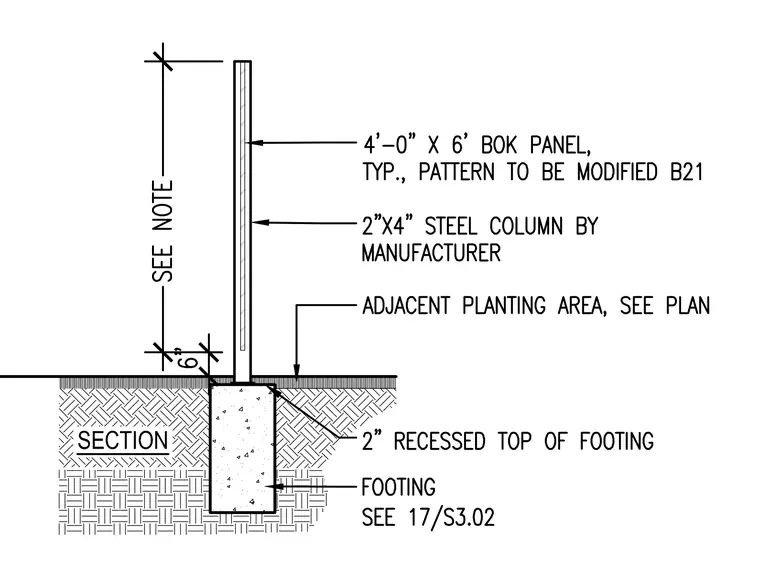

A 4'-0" by 6' decorative panel with a modified pattern mounts to a 2"x4" steel column provided by the manufacturer. The steel column extends down to a concrete footing featuring a 2" recessed top. The footing matches structural drawing 17/S3.02 and is positioned adjacent to a planting area as shown on the plan. A vertical dimension of 6" is shown above the recessed footing top, with the overall height governed by note.
