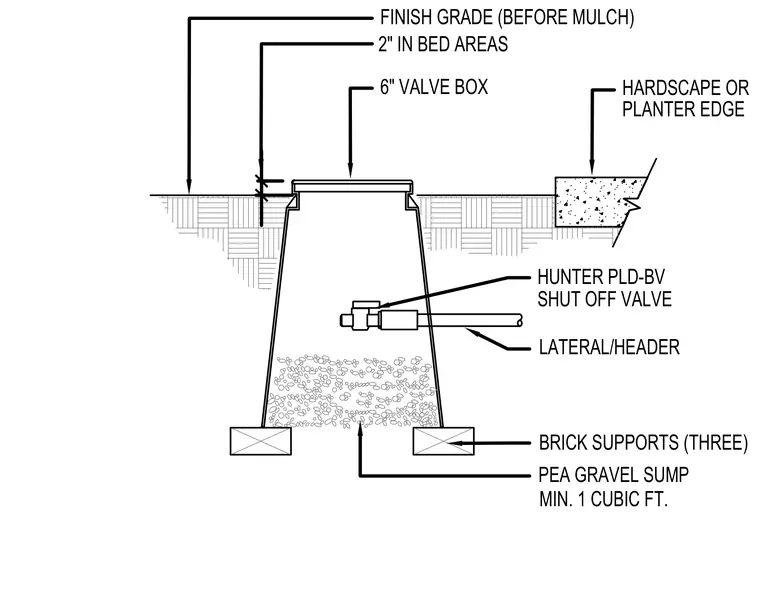

A six-inch valve box encloses a Hunter PLD-BV shut-off valve connected to a lateral or header pipe. The box bears on three brick supports set into a minimum one cubic foot pea gravel sump for drainage. Finish grade sits flush with the top of the valve box, maintaining two inches in bed areas relative to adjacent hardscape or planter edges.
HARDSCAPE OR LATERAL/HEADER HUNTER PLD-BV FINISH GRADE (BEFORE MULCH) 2" IN BED AREAS 6" VALVE BOX PEA GRAVEL SUMP MIN. 1 CUBIC FT. BRICK SUPPORTS (THREE) SHUT OFF VALVE PLANTER EDGE
