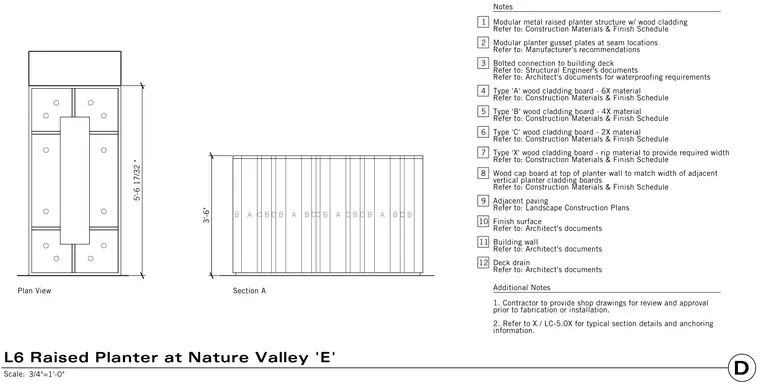

This modular metal raised planter features wood cladding and gusset plates at seam locations with a bolted connection to the building deck. The assembly includes type A, B, C, and X wood cladding boards with a wood cap board at the top of the planter wall. Construction coordinates with adjacent paving, finish surfaces, building walls, and deck drains.
