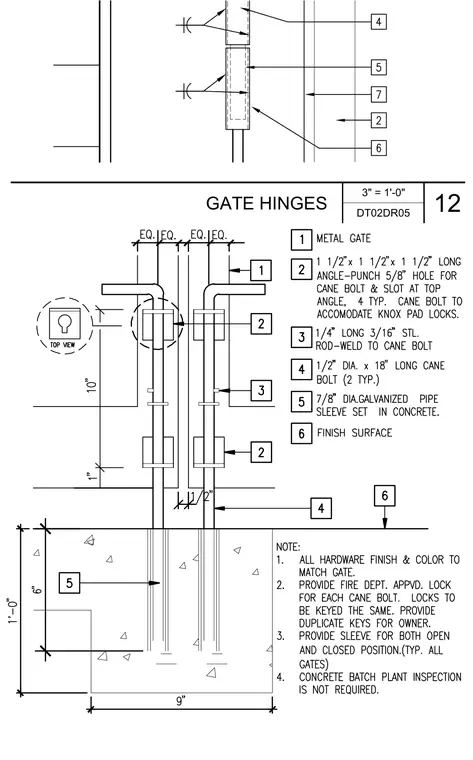

Metal gates secure with one-and-a-half-inch by one-and-a-half-inch angles punched with five-eighths-inch holes for cane bolts, featuring four typical slots at the top angles to accommodate Knox padlocks. One-quarter-inch long, three-sixteenths-inch steel rods weld to the cane bolts. Half-inch diameter by eighteen-inch long cane bolts drop into seven-eighths-inch diameter galvanized pipe sleeves set in concrete foundations. Finish surfaces transition at the concrete slabs, with hardware finishes and colors matching the gates.
