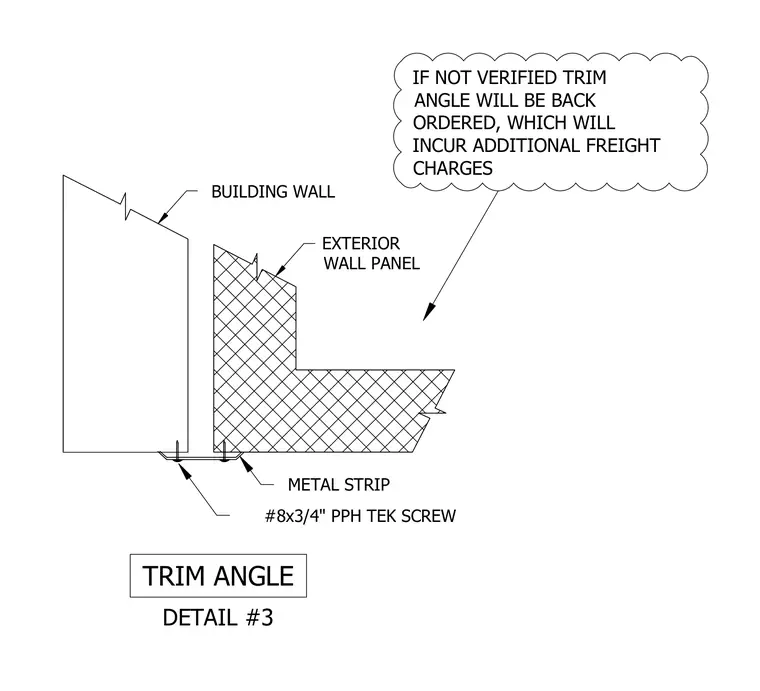

A metal strip spans between the building wall and the exterior wall panel, secured with number 8 by 3/4 inch pan head self-drilling tek screws. Field verification is required to prevent back orders and associated freight charges.
DETAIL #3 TRIM ANGLE METAL STRIP BUILDING WALL WALL PANEL EXTERIOR #8x3/4" PPH TEK SCREW IF NOT VERIFIED TRIM ANGLE WILL BE BACK ORDERED, WHICH WILL INCUR ADDITIONAL FREIGHT CHARGES
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
