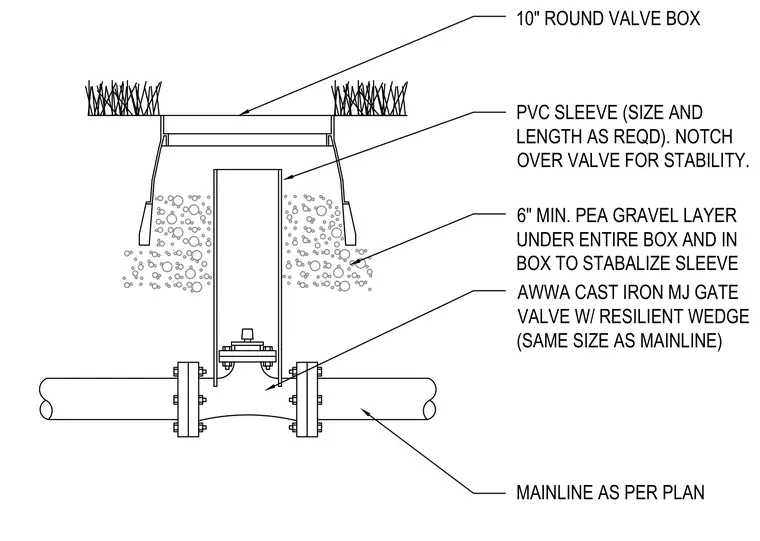

An American Water Works Association cast iron mechanical joint gate valve with a resilient wedge connects to the mainline as specified per plan. A polyvinyl chloride sleeve of required size and length notches over the valve for stability and extends up to a ten-inch round valve box. A six-inch minimum pea gravel layer sits under the entire box and fills the interior to stabilize the sleeve.
10" ROUND VALVE BOX PVC SLEEVE (SIZE AND LENGTH AS REQD). NOTCH OVER VALVE FOR STABILITY. 6" MIN. PEA GRAVEL LAYER UNDER ENTIRE BOX AND IN BOX TO STABALIZE SLEEVE AWWA CAST IRON MJ GATE VALVE W/ RESILIENT WEDGE (SAME SIZE AS MAINLINE) MAINLINE AS PER PLAN
