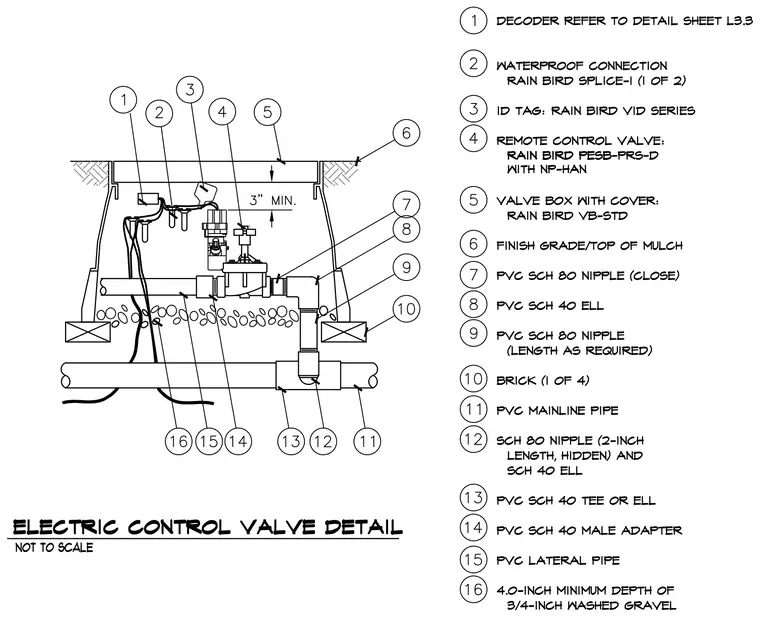

An underground irrigation valve box houses a remote control valve connected to PVC lateral and mainline pipes. The assembly includes a Rain Bird PESB-PRS-D valve with an NP-HAN, waterproof wire splices, and a decoder linking to sheet L3.3. A Schedule 80 PVC close nipple and Schedule 40 elbow tie the valve into a vertical drop supported by brick footings over a washed gravel bed. The entire setup sits beneath a standard valve box with cover, positioned flush with the finish grade and top of mulch.
