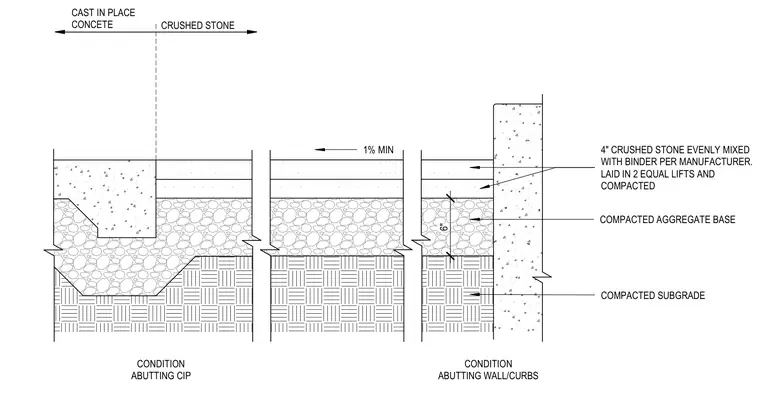

A decomposed granite paving assembly rests upon a compacted subgrade and six-inch compacted aggregate base. The wearing course consists of four inches of crushed stone mixed with a binder per the manufacturer, laid in two equal lifts and compacted. A one percent minimum slope directs drainage across the surface. Conditions show the paving assembly abutting cast-in-place concrete as well as concrete walls and curbs.
COMPACTED SUBGRADE COMPACTED AGGREGATE BASE 4" CRUSHED STONE EVENLY MIXED WITH BINDER PER MANUFACTURER. LAID IN 2 EQUAL LIFTS AND COMPACTED CONDITION ABUTTING CIP CONDITION ABUTTING WALL/CURBS 1% MIN CAST IN PLACE CONCETE CRUSHED STONE 6"
