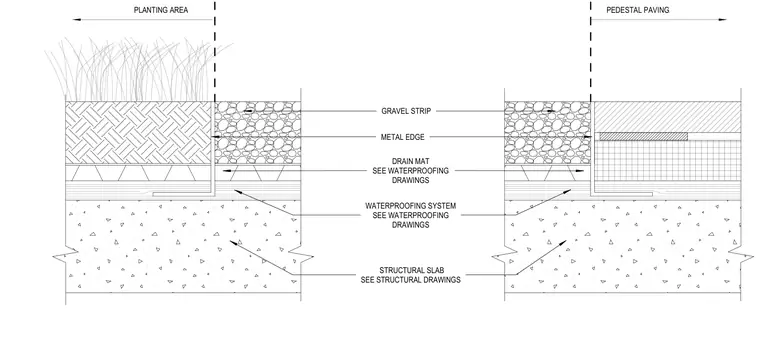

A metal edge restrains the gravel strip and separates the planting area on the left from the pedestal paving on the right. A drain mat and waterproofing system sit directly on top of the structural slab. The gravel strip abuts the vertical leg of the metal edge, which extends down over the waterproofing layers.
METAL EDGE GRAVEL STRIP DRAIN MAT SEE WATERPROOFING DRAWINGS WATERPROOFING SYSTEM SEE WATERPROOFING DRAWINGS STRUCTURAL SLAB SEE STRUCTURAL DRAWINGS PEDESTAL PAVING PLANTING AREA
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
