L-E926V — Flex Room Table Leg Assembly

Landscape · L-E926V

Flex Room Table Leg Assembly

Scale: 3" = 1'-0"
Units: imperial
Sheet: LO-A9.7.3
Discipline: Landscape

Materials

Composite Metal (misc.)Steel Timber / Wood

Elements

Connections / Plates Millwork / Casework

Connections

Timber / Mass-Timber Connection

Text on the drawing

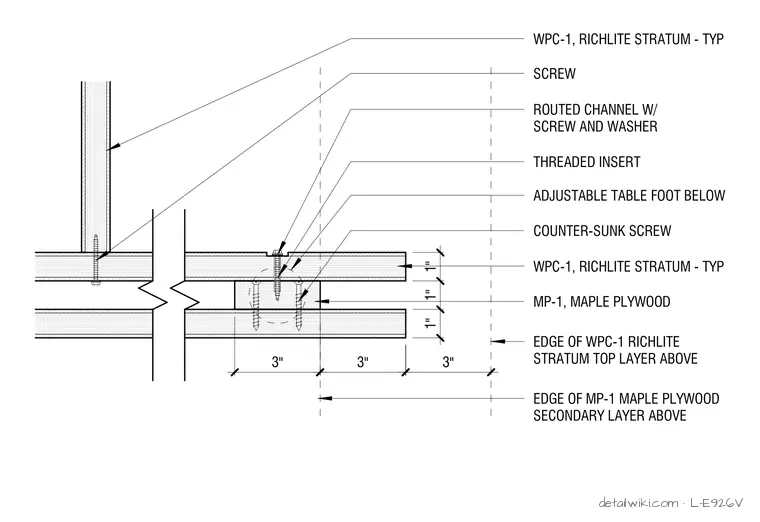

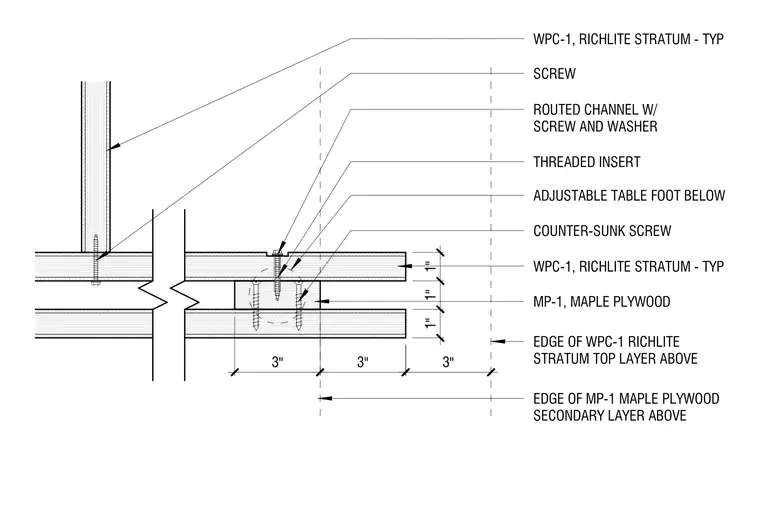

1" 1" 1" ROUTED CHANNEL W/ SCREW AND WASHER THREADED INSERT COUNTER-SUNK SCREW SCREW 3" 3" 3" MP-1, MAPLE PLYWOOD WPC-1, RICHLITE STRATUM - TYP WPC-1, RICHLITE STRATUM - TYP EDGE OF WPC-1 RICHLITE STRATUM TOP LAYER ABOVE EDGE OF MP-1 MAPLE PLYWOOD SECONDARY LAYER ABOVE ADJUSTABLE TABLE FOOT BELOW
