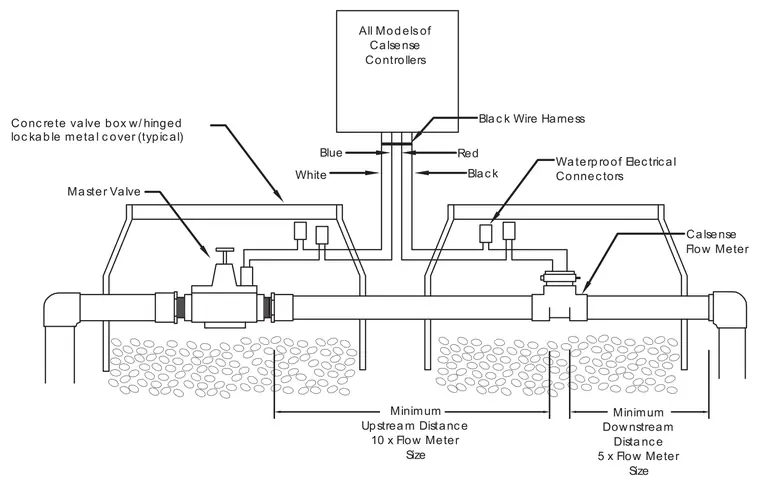

The installation incorporates a master valve and a Calsense flow meter housed inside concrete valve boxes featuring hinged lockable metal covers typically used in landscape irrigation systems. The pipeline maintains a minimum upstream distance of ten times the flow meter size and a minimum downstream distance of five times the flow meter size. Electrical connections utilize waterproof electrical connectors linked via a black wire harness with white, blue, red, and black wire designations connecting to Calsense controllers.
Minimum Upstream Distance 10 x Flow Meter Size All Models of Calsense Controllers lockable metal cover (typical) Master Valve White Blue Calsense Flow Meter Minimum Downstream Distance 5 x Flow Meter Size Waterproof Electrical Connectors Black Wire Harness Black Red Concrete valve box w/hinged
