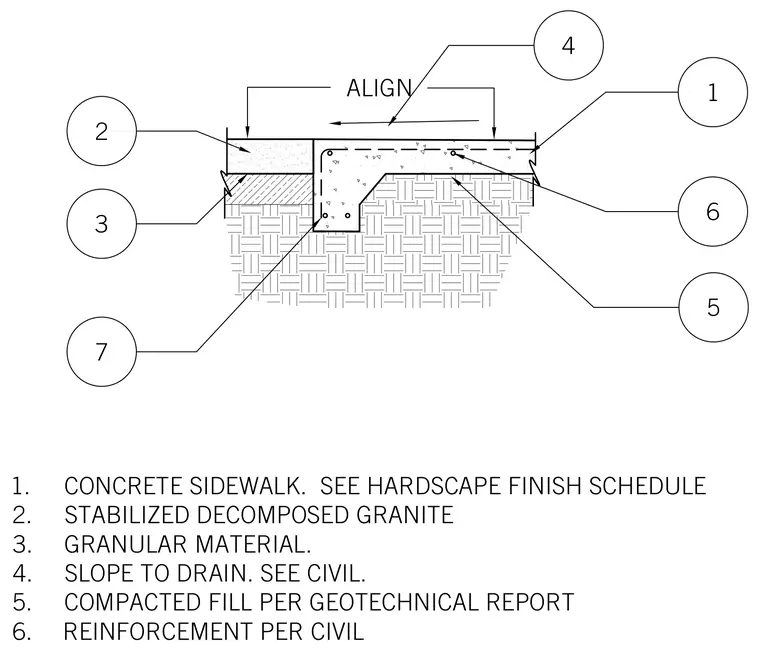

A concrete sidewalk aligns with a stabilized decomposed granite surface resting on granular material and compacted fill per the geotechnical report. Reinforcement is placed per civil engineering requirements, and the surface slopes to drain as specified by civil drawings. The concrete sidewalk finish is sized per the hardscape finish schedule.
ALIGN 1. CONCRETE SIDEWALK. SEE HARDSCAPE FINISH SCHEDULE 2. STABILIZED DECOMPOSED GRANITE 3. GRANULAR MATERIAL. 4. SLOPE TO DRAIN. SEE CIVIL. 5. COMPACTED FILL PER GEOTECHNICAL REPORT 6. REINFORCEMENT PER CIVIL 1 5 2 4 6 3 7
