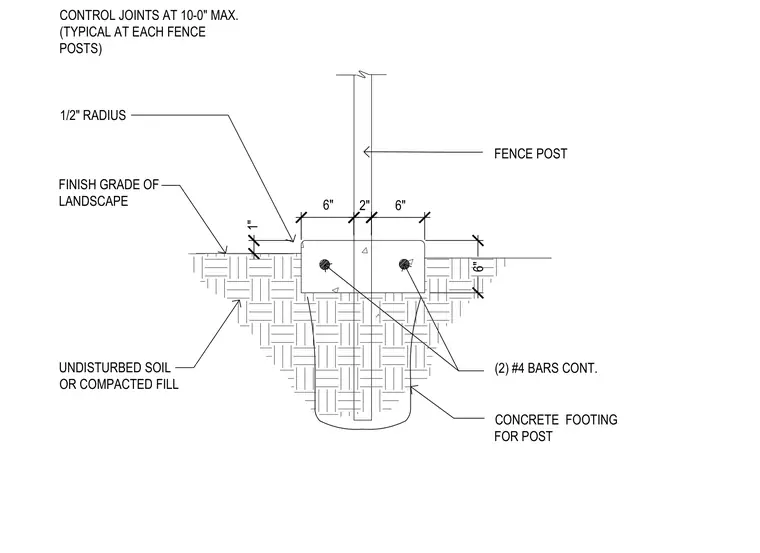

A concrete mow strip encases the base of a fence post, resting on a deeper concrete footing embedded in undisturbed soil or compacted fill. Two continuous number four reinforcing bars run horizontally through the mow strip and footing. Control joints are spaced at a maximum of ten feet on center, located at each fence post. The mow strip features a one-half-inch radius edge at the finish grade of the landscape.
1/2" RADIUS FINISH GRADE OF LANDSCAPE CONTROL JOINTS AT 10-0" MAX. (TYPICAL AT EACH FENCE POSTS) FENCE POST (2) #4 BARS CONT. CONCRETE FOOTING FOR POST 1" 6" 2" 6" 6" UNDISTURBED SOIL OR COMPACTED FILL
