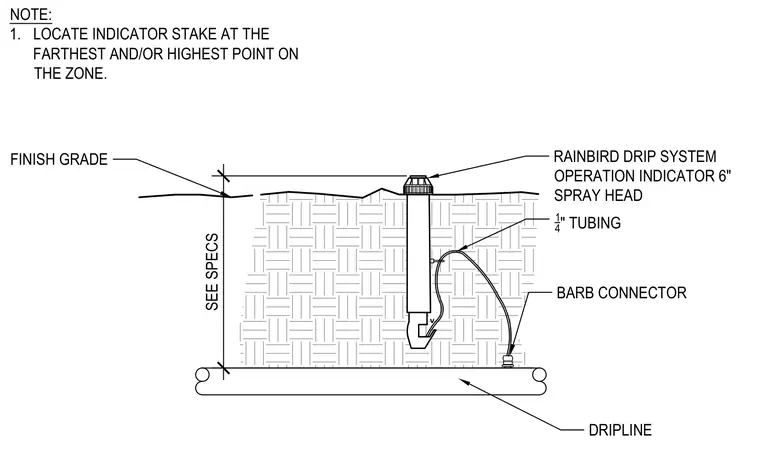

A Rainbird drip system operation indicator with a six-inch spray head is installed at finish grade and connected to a dripline via one-quarter inch tubing and a barb connector. The indicator stake is located at the farthest and or highest point on the zone per specifications.
NOTE: 1. LOCATE INDICATOR STAKE AT THE FARTHEST AND/OR HIGHEST POINT ON THE ZONE. DRIPLINE FINISH GRADE BARB CONNECTOR SEE SPECS 1 4 " TUBING RAINBIRD DRIP SYSTEM OPERATION INDICATOR 6" SPRAY HEAD
