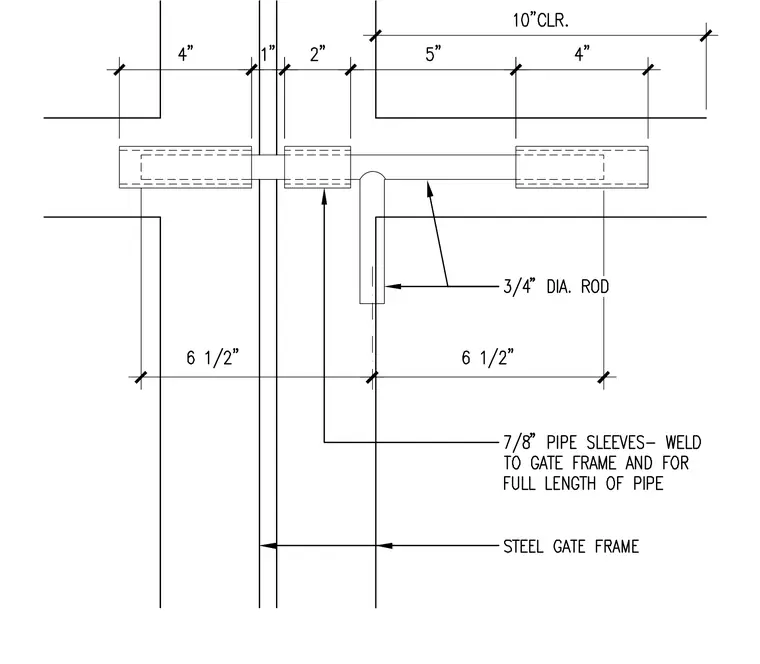

A slide bolt gate latch assembly is mounted on a steel gate frame. The assembly consists of a three-quarter-inch diameter rod operating within seven-eighths-inch pipe sleeves that are welded to the gate frame for the full length of the pipe. Dimension callouts indicate a ten-inch clear opening with specific four-inch, one-inch, two-inch, five-inch, and six-and-one-half-inch spacing increments across the gate members.
