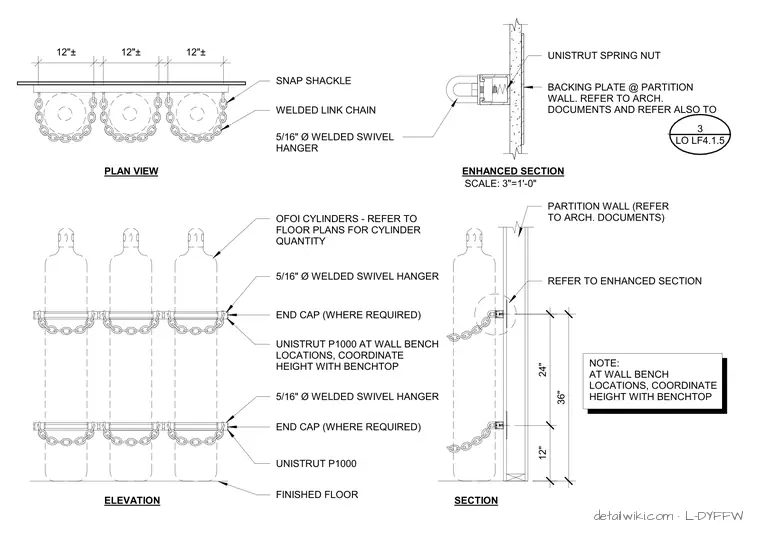

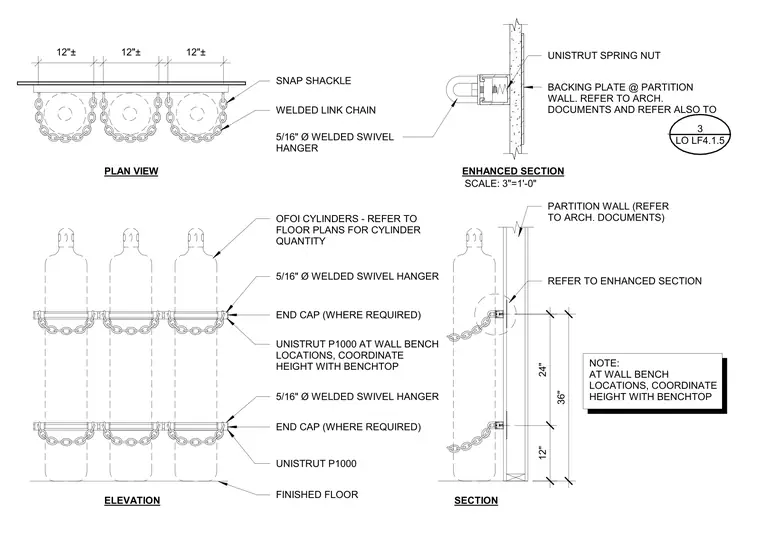

Compressed gas cylinders are secured against a partition wall using Unistrut P1000 channels mounted horizontally at twenty-four and thirty-six inches above the finished floor. The channels receive Unistrut spring nuts and attach to welded link chains wrapped around the cylinders via five-sixteenth-inch diameter welded swivel hangers and snap shackles. End caps are installed on the Unistrut channels where required. A backing plate is provided at the partition wall, and heights are coordinated with adjacent wall benches.
12"± 12"± WELDED LINK CHAIN 5/16" Ø WELDED SWIVEL HANGER PLAN VIEW ELEVATION SECTION ENHANCED SECTION FINISHED FLOOR REFER TO ENHANCED SECTION SNAP SHACKLE SCALE: 3"=1'-0" BACKING PLATE @ PARTITION WALL. REFER TO ARCH. DOCUMENTS AND REFER ALSO TO 5/16" Ø WELDED SWIVEL HANGER UNISTRUT SPRING NUT PARTITION WALL (REFER TO ARCH. DOCUMENTS) 12"± OFOI CYLINDERS - REFER TO FLOOR PLANS FOR CYLINDER QUANTITY 5/16" Ø WELDED SWIVEL HANGER UNISTRUT P1000 UNISTRUT P1000 AT WALL BENCH LOCATIONS, COORDINATE HEIGHT WITH BENCHTOP NOTE: AT WALL BENCH LOCATIONS, COORDINATE HEIGHT WITH BENCHTOP LO LF4.1.5 3 12" 24" 36" END CAP (WHERE REQUIRED) END CAP (WHERE REQUIRED)
