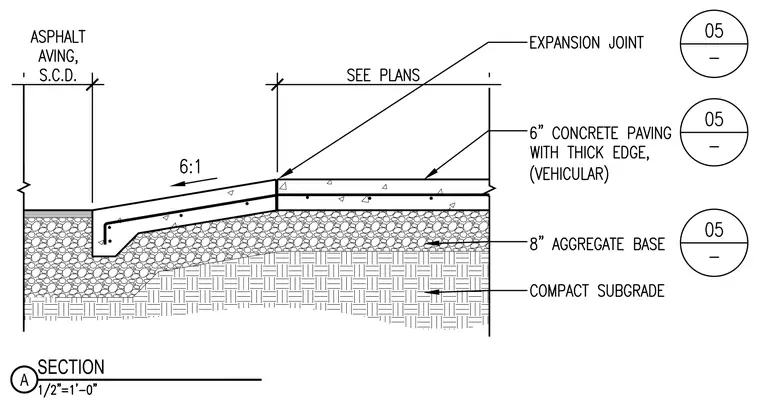

This landscape detail shows a transition between six-inch thick vehicular concrete paving and asphalt paving with a stepped edge. The concrete paving features a thick edge condition bearing on an eight-inch aggregate base over compact subgrade, transitioning at an expansion joint with a six-to-one slope. An adjacent asphalt paving section connects at the thickened concrete edge per plan.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
