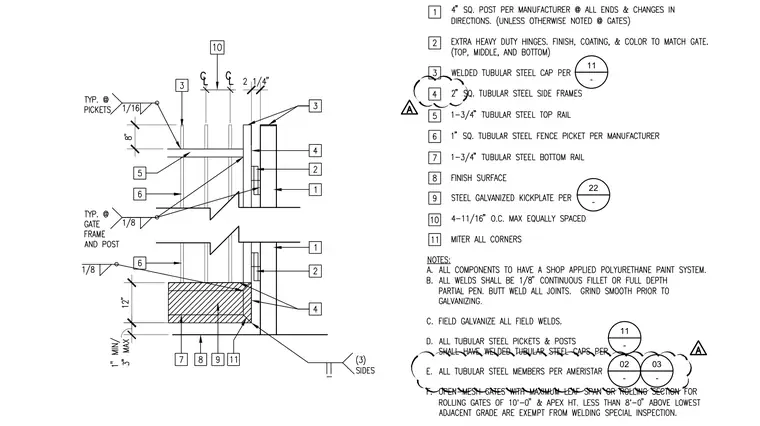

The swing gate assembly features four-inch square tubular steel posts at all ends and direction changes, fitted with extra-heavy-duty hinges at the top, middle, and bottom. Two-inch square tubular steel side frames, one and three-quarter-inch tubular steel top and bottom rails, and one-inch square tubular steel fence pickets make up the gate leaf. A steel galvanized kickplate is installed at the base, and all corners are mitered with welded tubular steel caps. All components receive a shop-applied polyurethane paint system, and all joints are welded with one-eighth-inch continuous fillet or full-depth partial penetration butt welds.
