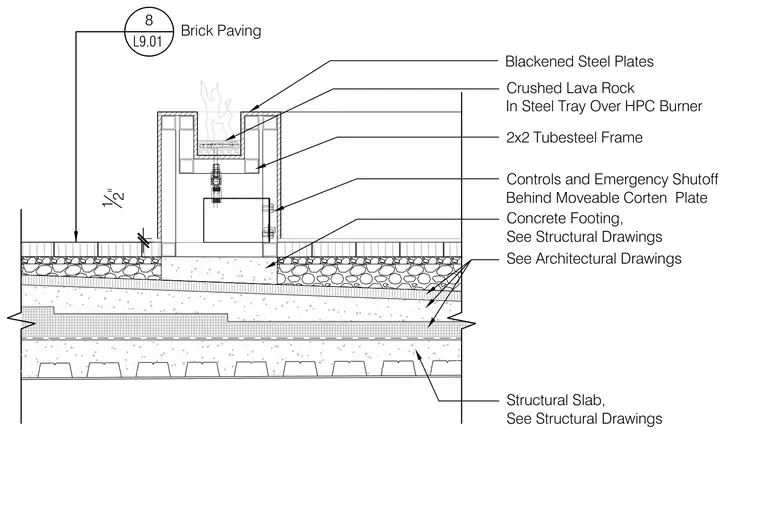

A rooftop fire feature assembly is anchored to a structural slab. The structure consists of a two-by-two tubesteel frame clad in blackened steel plates with crushed lava rock set in a steel tray over a high-performance electronic burner. Controls and an emergency shutoff are housed behind a moveable Cor-ten plate. The fire feature rests on a concrete footing above brick paving and underlying structural slab layers.
Blackened Steel Plates 2x2 Tubesteel Frame Crushed Lava Rock In Steel Tray Over HPC Burner Controls and Emergency Shutoff Behind Moveable Corten Plate 12" Structural Slab, See Structural Drawings See Architectural Drawings Concrete Footing, See Structural Drawings 8 L9.01 Brick Paving
