One-inch thick wood shelves span a maximum length of thirty-six inches across three tiers unless otherwise noted, supported by sixteen-gauge bookend-style shelf brackets engaging double-slotted shelf standards. The vertical standards anchor to concealed backing plates provided at four locations per architectural coordination. Shelves mount above finished floor elevations starting at fifty-four inches with a thirty-inch vertical tier spacing. Safety rails are required on shelves wider than twenty-four inches, and a safety edge detail is provided.

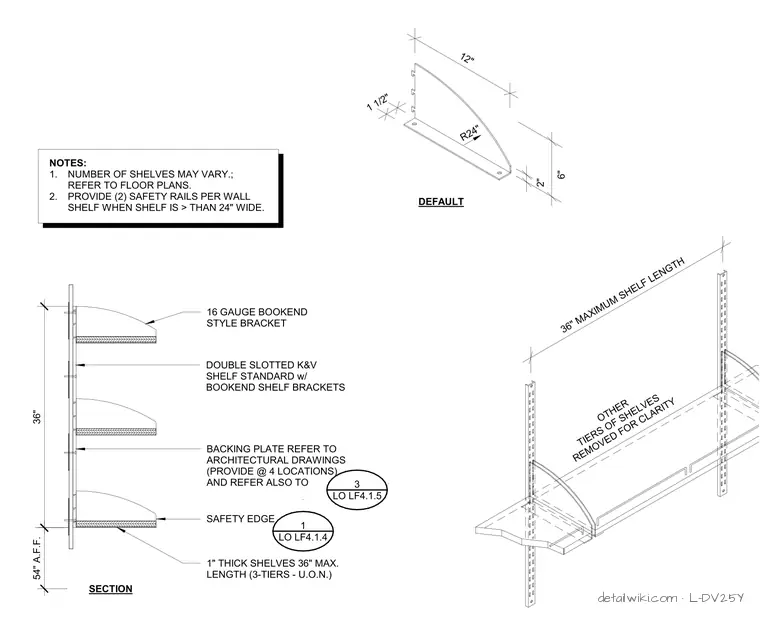

R24" SECTION OTHER TIERS OF SHELVES REMOVED FOR CLARITY 16 GAUGE BOOKEND STYLE BRACKET 1" THICK SHELVES 36" MAX. LENGTH (3-TIERS - U.O.N.) SAFETY EDGE DOUBLE SLOTTED K&V SHELF STANDARD w/ BOOKEND SHELF BRACKETS BACKING PLATE REFER TO ARCHITECTURAL DRAWINGS (PROVIDE @ 4 LOCATIONS) AND REFER ALSO TO 2" 1 1/2" 36" MAXIMUM SHELF LENGTH 6" 12" 36" 54" A.F.F. LO LF4.1.4 1 LO LF4.1.5 3 NOTES: 1. NUMBER OF SHELVES MAY VARY.; REFER TO FLOOR PLANS. 2. PROVIDE (2) SAFETY RAILS PER WALL SHELF WHEN SHELF IS > THAN 24" WIDE. DEFAULT
